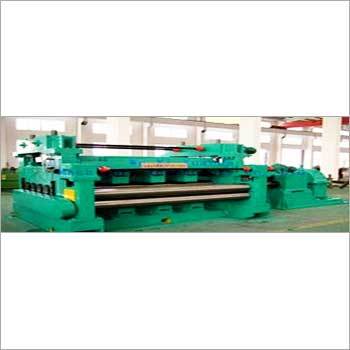

Coil Straightening Machine

Coil Straightening Machine
Coil Straightening Machine
Product Code : 06
Product Description

Our company is a far-famed manufacturer of Coil Straightening Machine - Plate Levelling Machine. The nuts, screws and worm wheel of this device is made up of EN-8  and the bushes are developed from phosphorus bronze-2(PB-2). Our technocrats use set domestic and international standards as well as codes to fabricate a perfect machine within stipulated duration. Our Coil Straightening Machine - Plate Levelling Machine  has gained wide appreciation due to sturdy construction, long service life, less maintenance and impeccable functioning.

Important Features:

  • Rolls: EN-19 Tested 7, 9, 11 or 13 numbers of duly machined, hardened and ground finished.
  • Induction Motor: 3 phase, 440 volts.
  • Holes: Done on DRO fitted Jig Boring Machine.
  • Base Frame:Fabricated with heavy 'I' beams and channels.
  • Reduction Gear Boxes: As per application.
  • Body Plate: Made of good quality M.S. profile cut from 65 to 70 mm thick and machined on planer.
  • Distribution Gear Box: EN-24 series Gears gives movement to all rolls simultaneously with the help of universal joints.
  • Rolls: specially designed for Tin plates and P.C>R.C> Coils. Dia. 100mm X 1300mm width X 9 rolls.
  • For C.R. and H.R. coils. Dia 200mm X 2100mm width X 13 rolls.

Model No.

Capacity in (mm)

No. of rolls

Rolls. Dia (mm)

Motor H.P.

PF-1

0.1 to 2 X 1300

9

100

5

PF-2

2 to 6 X 2100

11

150

10

PF-3

6 to 10 X 2100

11

175

15

PF-4

6 to 12 X 2100

13

200

20
