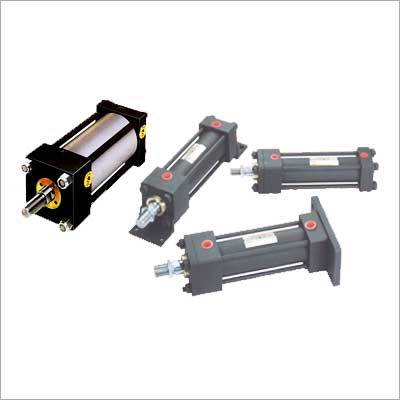

Hydraulic Cylinders

Hydraulic Cylinders
Hydraulic Cylinders
Product Code : 04
Product Description
Our company is an eminent manufacturer of Hydraulic Cylinders, which are extensively utilized in mining and construction industries for the trouble free handling of heavy equipment like steel as well as for mobile transport system. Our gamut includes hydraulic cylinders (jacks) and telescopic cylinders that are provided in both standard plus customized forms. The entire assortment is widely used in railways, defense, thermal plants, atomic plants, hydro plants and aerospace. Besides this, the entire spectrum is designed and tested as per ASME standards.

General Purpose Cylinders

'PF' make Hydraulics Cylinders are manufactured for high efficiency performance and  simple maintenance, extensively utilized in Cement Plant , Steel Plant, Earth moving Equipments, Sugar Plant, Ferro Alloys furnaces, Mining, Machine tools and Automobiles.

Range:
  • Cylinder bore conform to CETOP/ISO3320/IS 8208/
  • Maximum stroke of 5000mm.
Cylinders are available in different mounting styles:
  • (Front)flange mounting
  • Foot mounting
  • Plain piston rod end
  • Male / Female threaded rod end
  • Rod end with eye
  • (Rear) flange mounting
  • Male/Female clevis mounting
  • Head end / cap end / central trunnion mounting
MANUFACTURING AND TESTS: Cylinders are made of cold drawn seamless steel tube(CDS), material conforming to ASTMA 106 gr . B or DIN 2391,they are precision honed.The life of the cylinders is enhanced using highest quality seals from Bushak Shamban / Parker / Hunger / Simirit etc. They are tested as per ANSI / IS 10585 for pressure / static /internal leakage and static friction.

Special Features

These features are provided as per customer / end use requirements.
  • Inner diameter chrome plated for corrosion resistance and low seal friction.
  • Cylinder outside surface coated for marine application.
  • Cylinder end and / or rod end with adjustable or non adjustable cushioning.
  • Clevis and rod end eye fitted with plain spherical bearings.
  • Stop tube provided in extra long Cylinders.
  • Imported sealing system with non metallic guide rings on piston and rod.
Models Include
  • LSP( spring return)
  • LLP (Load return)
  • LSHC & LDHC( Centre hole Jacks)
  • LD (Double acting Jacks)
  • ALP( Aluminium Jacks) etc.
  • LLT (Threaded ram with lock nut)
  • SSP( Shorty rams)
  • FSP( flat jacks)

Hydraulic Cylinder Attributes:
  • Heat treated alloy steel body
  • High pressure, long life seals
  • Supplied with quick coupler with dust cap
  • Hard chrome plated ram for surface protection in spring return snd plain ram jacks
  • Fixing holes at the base
  • Surface treatment on cylinder body & tilting saddle can also be provided on request
  • Working Pressure 700 bar
